Digital Multimeter AC DC Voltage 6000 Counts True RMS Voltmeter Auto-Ranging Tester Non-Contact Voltage Detection Tools ,Versatile Measurement

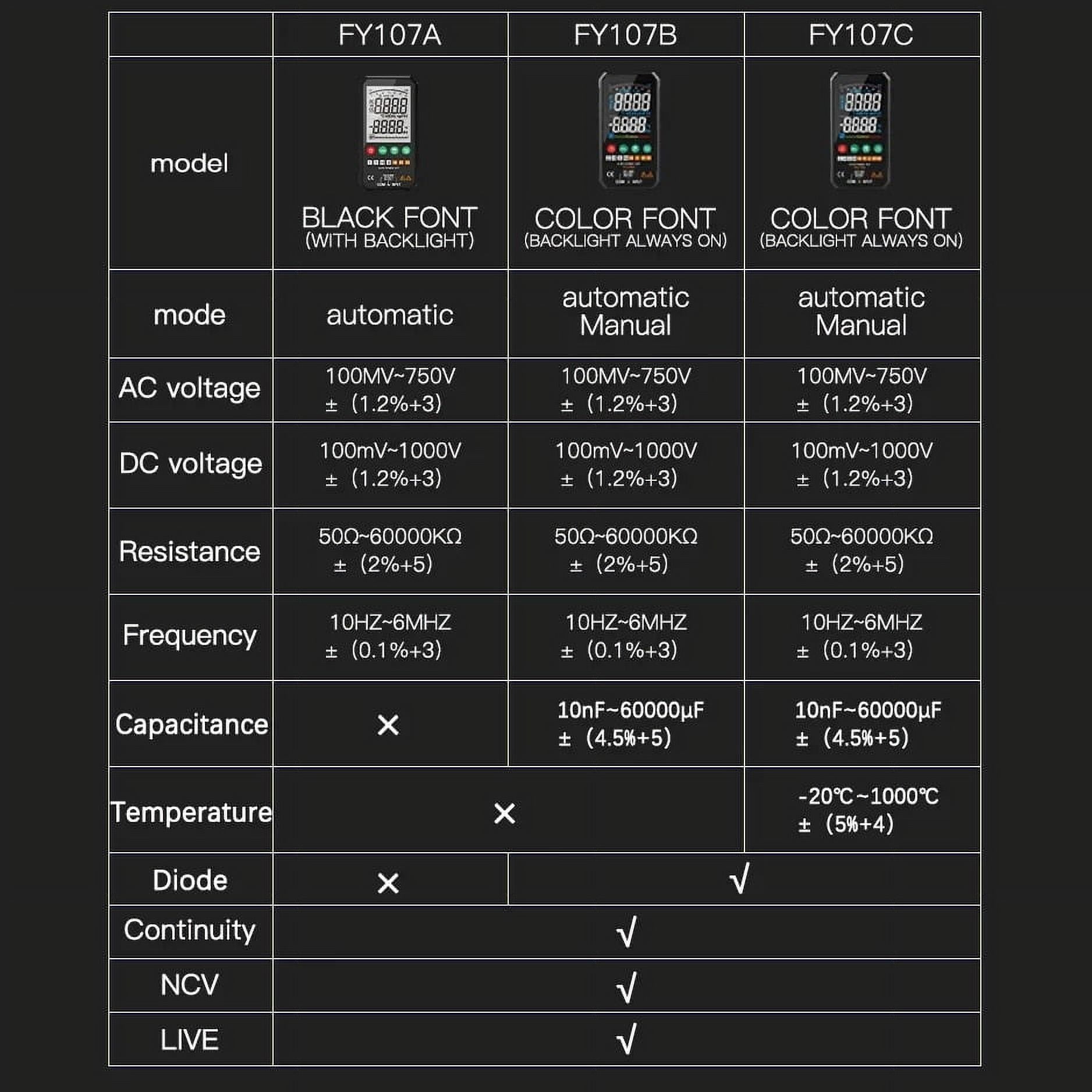

<p>FY107A functions: AC voltage, DC voltage, resistance, continuity, frequency, NCV(Non-contact voltage), live wire checking, data hold, backlight, flashlight.</p><p>FY107B functions: AC voltage, DC voltage, resistance, continuity, frequency, NCV(Non-contact voltage), live wire checking, data hold, backlight, flashlight, diode, capacitance.</p><p>FY107C functions: AC voltage, DC voltage, resistance, continuity, frequency, NCV(Non-contact voltage), live wire checking, data hold, backlight, flashlight, diode, capacitance, temperature.</p><p>AC voltage:100mV~750V</p><p>DC voltage:100mV~1000V</p><p>Resistance:50-60M</p><p>Frequency:10Hz~6000kHz</p><p>Capacitance:10nF-60mF</p><p>Temperature(FY107C only):-20~1000</p><p>On-off buzzer:The resistance of the tested circuit is less than 50, and the auxiliary buzzer in the instrument will sound.</p><p>Diode:Display approxinmate diode forward voltage value</p><p>NCV(Non-contact voltage):There are three alarm modes depending on the voltage intensity.</p><p>Live line identification:It's on the screen " Live " It's live line and there is an alarm sound.</p><p>Automatic shutdown:It will shut down automatically if it is not used for about 15 minutes</p><p>Battery supply type:2*AAA 1.5V Battery(Not included)</p><p>There are different parameters for each model, please see the introduction below.</p><p>Related Products: </p><p>lcr meter, </p><p>megger tester, </p><p>esr meter, </p><p>multimeter tester, </p><p>inductance meter, </p><p>impedance meter, </p><p>electronic component tester, </p><p>lcr meters</p>

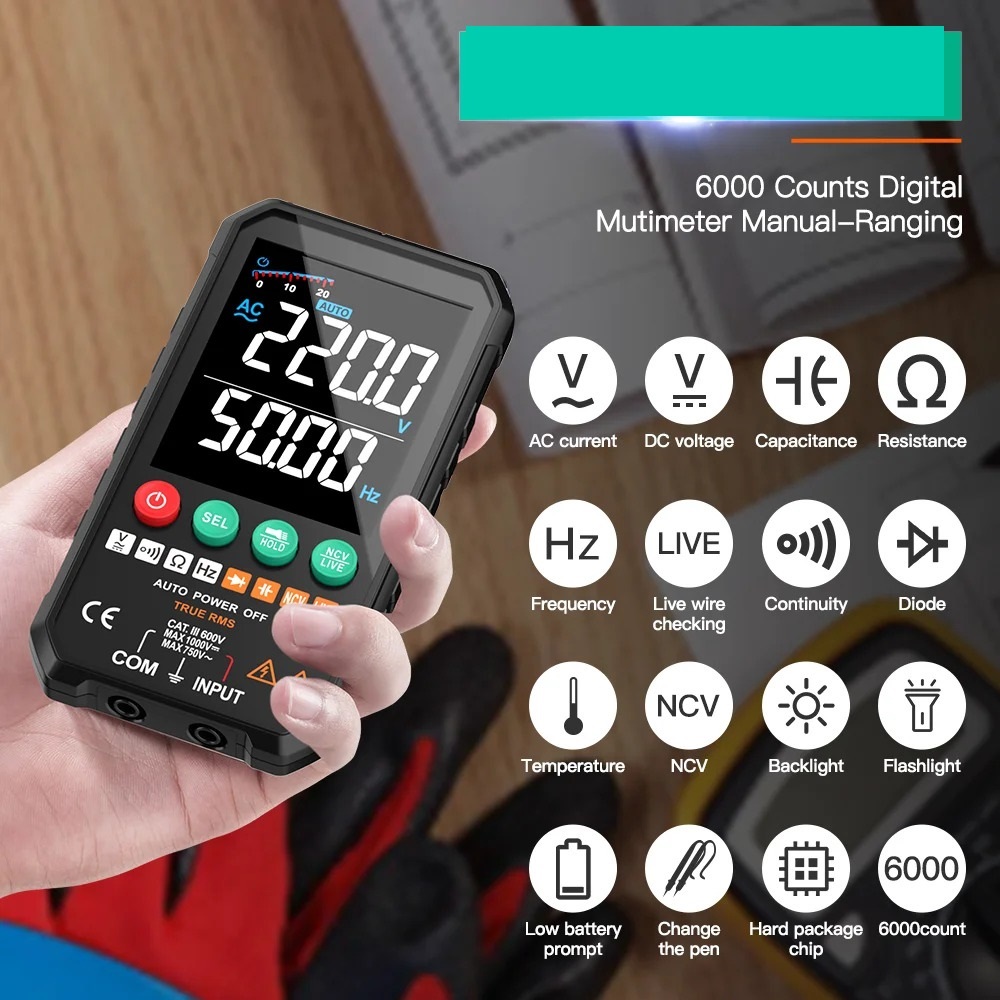

• 1. Versatile Functions: The Digital Multimeter offers a wide range of functions including AC voltage, DC voltage, resistance, continuity, frequency, NCV (Non-contact voltage) detection, live wire checking, data hold, backlight, and flashlight. With the FY107A model, you can also enjoy additional features like diode testing and capacitance measurement. For even more comprehensive capabilities, the FY107C model includes temperature measurement.
• 2. Wide Measurement Range: This Digital Multimeter is designed to accurately measure various parameters. It can handle AC voltage ranging from 100mV to 750V, and DC voltage from 100mV to 1000V. Additionally, it can measure resistance within the range of 50-60M, frequency from 10Hz to 6000kHz, and capacitance from 10nF to 60mF. The FY107C model also allows for temperature measurement in the range of -20°C to 1000°C.

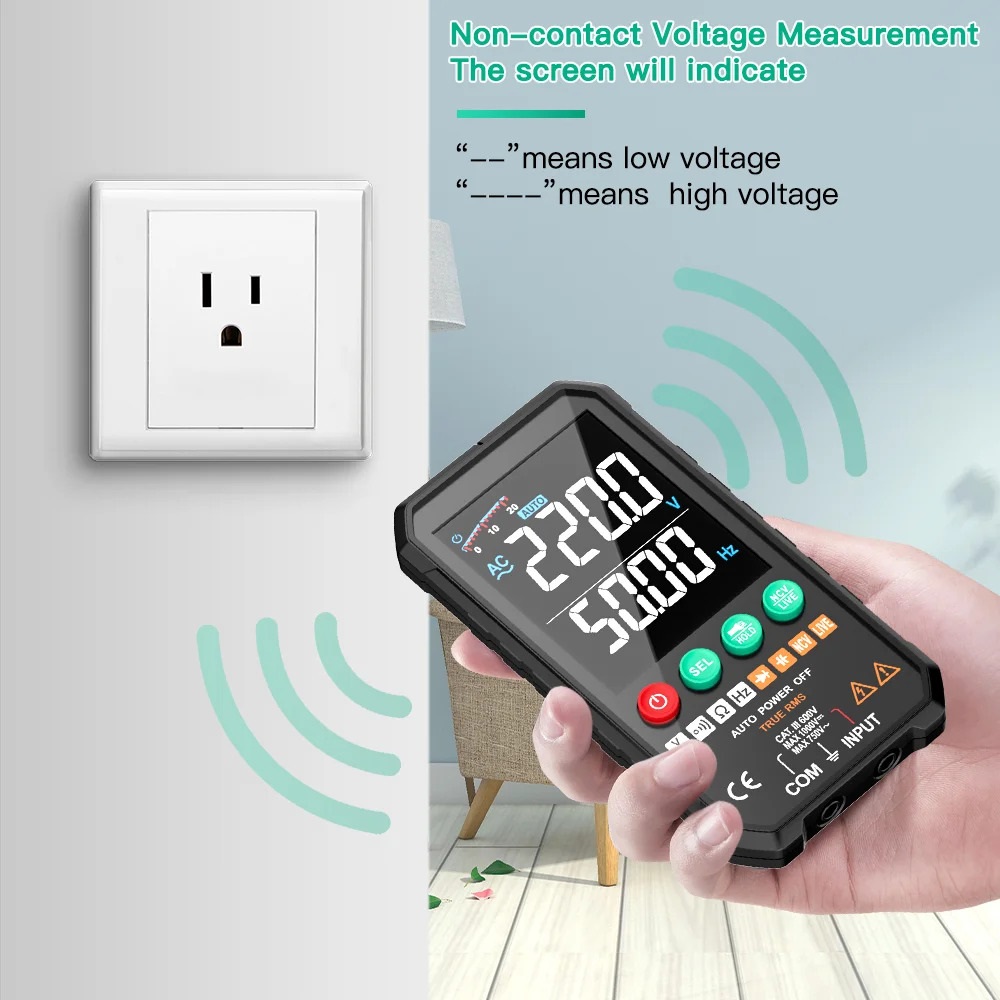

• 3. User-Friendly Features: With an on-off buzzer function, this multimeter will sound an alarm when the tested circuit's resistance is less than 50. The non-contact voltage (NCV) detection feature has three alarm modes depending on the voltage intensity. The live line identification displays "Live" on the screen and emits an alarm sound to indicate that the tested wire is live. To conserve battery power, the multimeter has an automatic shutdown feature that activates after approximately 15 minutes of inactivity.

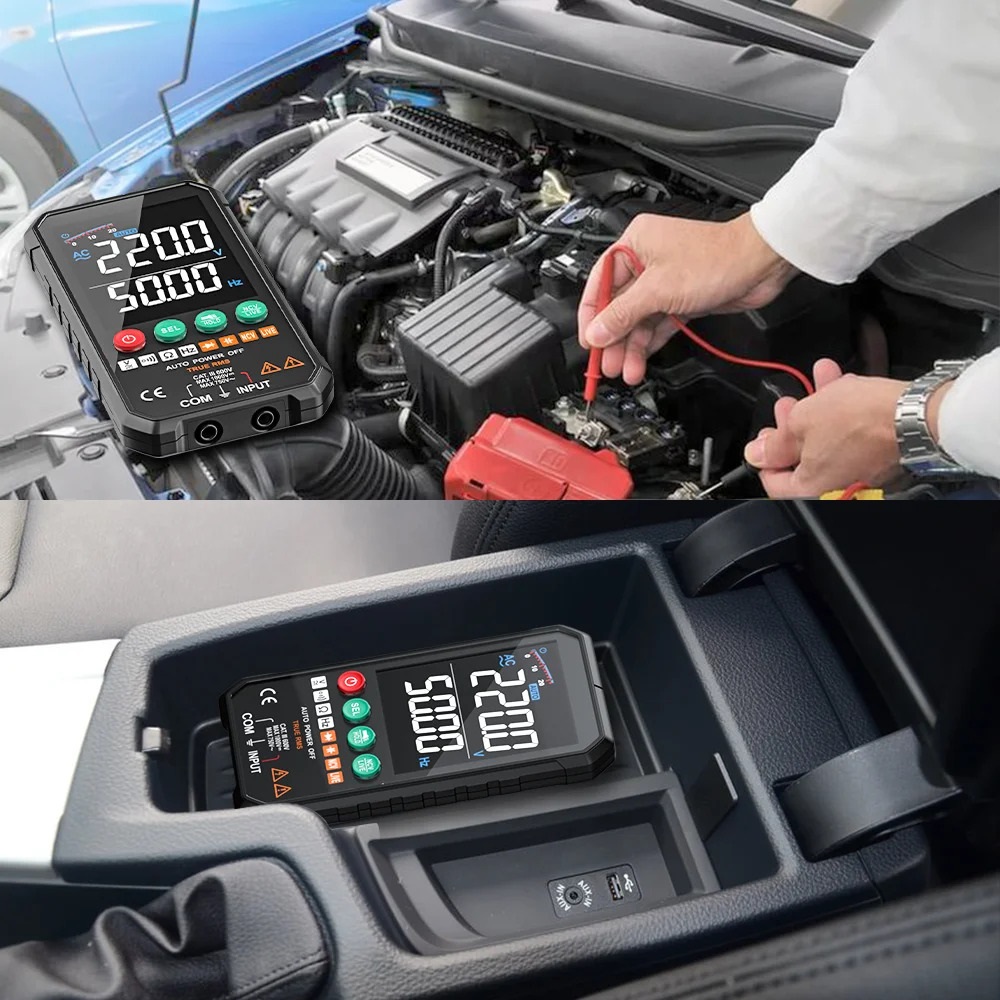

• 4. Convenient Design: Powered by two AAA 1.5V batteries (not included), this Digital Multimeter is easy to use and portable. Its compact size makes it suitable for various applications, whether you are a DIY enthusiast or a professional electrician. The instrument is also equipped with a backlight and flashlight, ensuring visibility in low-light environments.
• 5. Model Variations: Please note that there are different models available, each with its own set of parameters and capabilities. For a detailed description of each model, please refer to the product introduction provided below.
